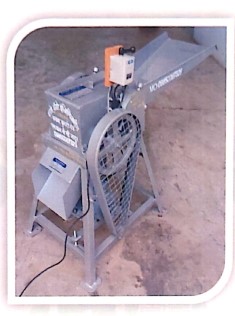

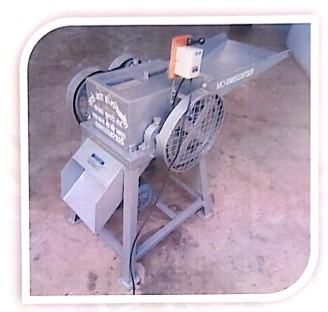

Chaff Cutter developed with new technology and proved beneficial for farmers doing dairy business

     Features of the Machine : -

1. Machine operates with 5 hp electric motor.
2. Chaff moves easily and automatically into the machine with the help of feed rolls.
3. Machine has sturdy angle foundation.
4. All movable parts of machine are covered as such no possibility of danger/accident.
5. Chaff, grass, maize, sugarcane, fodder for cattle etc. is converted into similar pieces of 12 mm to 20mm.
6. Chaff / grass etc. can be easily fed into the machine.
7. With the help of machine fodder for cattle can be made in large amount as such time and fodder are saved.
8. Electric Motor is installed on separate foundation on the machine.
9. Machine parts can be separated and fitted with the help of spanners.

Benefits of the machine : -

1. Animals eat the fodder easily and without wastage.
2. As such no wastage of fodder time and fodder are saved.
3. Fodder of good quality is prepared and it is easy for the animals to eat.
4. As a result there is an increase in milk produced.

Instruction to use the machine : -

1. During the initial use of machine less fodder should be fed into the machine.
2. Before the usage of machine all the nut bolts of the parts should be tightened with the help of spanners.
3. All the four legs of the machine should be kept properly in same level
4. All the grease cups of the machine should be filled with bearing grease of standard quality and oil should be applied on the chain and gear.
5. After usage of long duration of the machine the blades should be sharpened and if required they should be replaced.
6. After the sharpened or new blades are fitted caution should be taken to not keep more distance between the fixed blade and the rotor blades.
7. V Belt should be appropriately tightened in case the V Belt has loosened.

=============================================================================

=============================================================================

Technical specifications of Power Operated Chaff Cutter 5HP ( 5CC R/F Model ) with Electric Motor

Capacity of machine            -     1000 to 1200 kgs per hour.

Width of machine                -      600 mm.

Height of machine               -      1000 mm.

Length of machine               -      1500 mm.

Electric Motor                       -      5 hp 1440 rpm.

Motor Pulley                         -      90 mm / 2 groove 1 No.

Rotor Pulley                          -      300 mm  / 2 groove 1 No.

V Belt                                      -      B-61 – 2 Nos.

Weight of Machine              -      178 kgs with prime mover.

Cutting Blade                         -      High Carbon High Chromium – 3 Nos.

Blade Size                               -      300 mm x 48 mm x 8 mm – 2 Nos.

                                                         305 mm x 45 mm x 6.5 mm – 1 no.

Bearing                                   -      SKF 6208 – 2 Nos.

Sturdy Angle Stand              -       2” x 2” ¼” & 1.5” x 1.5” x ¼” Thick M S Angle.

Feed Rollers                           -      63.5 mm x 300 mm Cast Iron – 2 Nos.

Drive Gear                              -      Forged Steel Gear & Pinion – 1 Set.

-

=====================================================================================

Other Benefits of Chaff Cutter Machine

With the help of the machine Banana Branches, Coconut Tree Branches & Sugar Cane Remnants, Grape Tree Branches can be cut into small pieces which is easy for preparation of compost fertilizers

=====================================================================================

Instructions to install the electric motor

1. 15 Amperes capacity meter to be installed.
2. Suitable capacity wire to be used.
3. Earthing of the Electric Motor should be made.

1. Relay Starter of Standard Quality to be installed such that if current is abnormal the Relay Starter will trip & it will help the Electric Motor from getting damaged.

                                                               Comparative Chart

Chaff Bundles Required for 10 Animals        Chaff Fodder Required for 10 Animals

Daily 5 Chaff Bundles Per Animal                   Daily 2.5 Chaff Bundles Per Animal

Total 50 Chaff Bundles. Rs.15/- per               Total 25 Chaff Bundles. Rs.15/- per

Chaff Bundle Daily Rs.750/- Monthly           Chaff Bundle Daily Rs.500/- Monthly

Rs.22500/- Annually Rs.270000/-                  Rs.11250/- Annually Rs.135000/-

( Animals do not eat all the Chaff                  (As such due to Chaff Cutter Machine

Wasting the hard parts )                                  animals eat all the Chaff without wasting

                                                                              Any of the Chaff Bundlle

With the usage of our Chaff Cutter Machine you save Rs.135000/- per year
